Fluorosilicic Acid Transport
Pexgol Pipe for the Transport of Fluorosilicic Acid.
Case Study Nº
70
Customer
Phosphate Mine – ICL Rotem
Israel
|
1995
Working Conditions
Pressure: 5 bar / Temperature: 60°C
Pexgol Pipes
Pexgol 250 mm, Class 10 | Pexgol 280 mm, Class 10 | Pexgol 315 mm, Class 10
Application
Acid transport
Lenght

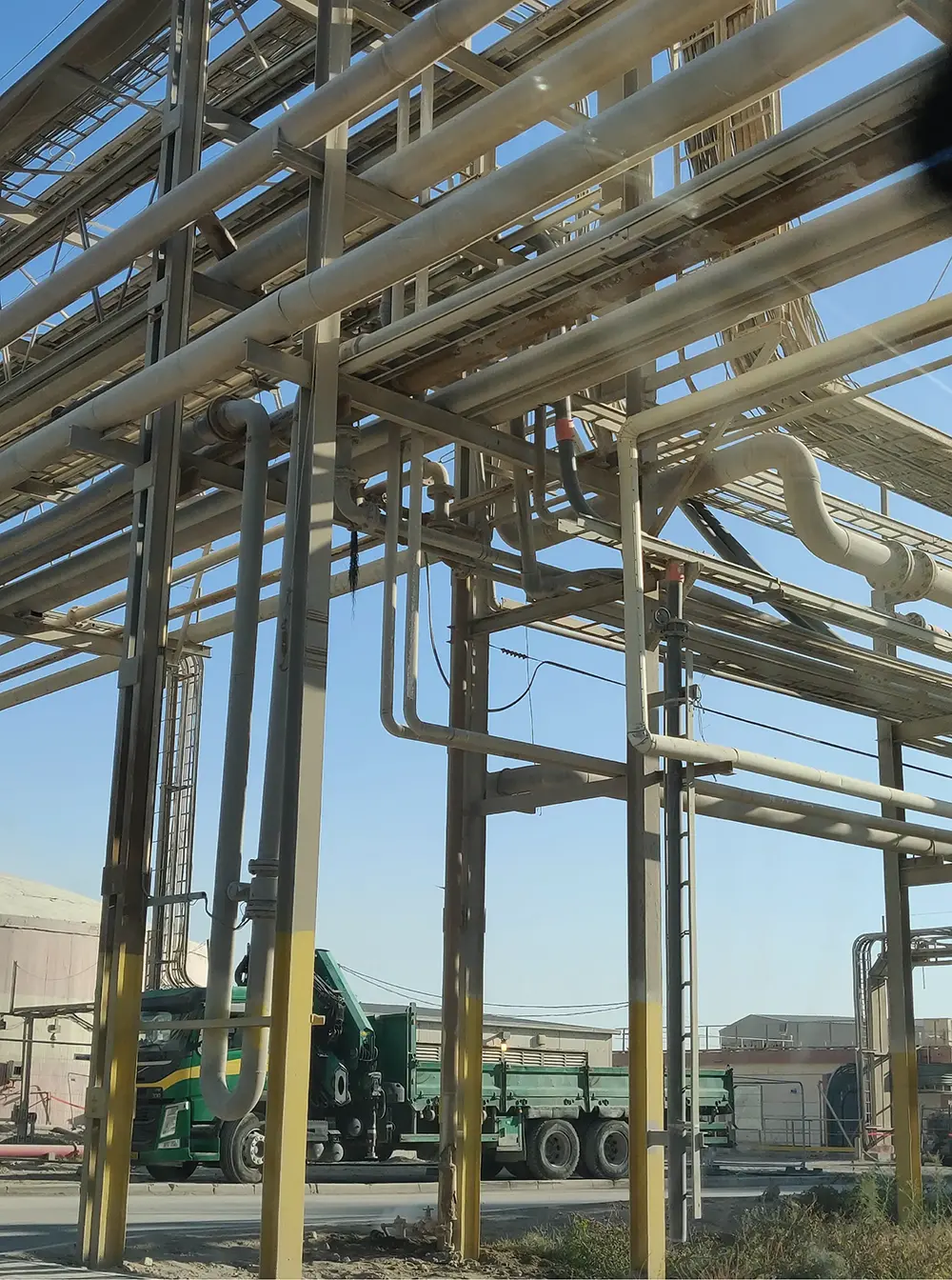

Systems made up of hundreds of meters with elbows, tees and branches.
Categories
The Challenge
From the beginning ICL Rotem used HDPE, 316 stainless steel and rubberized steel pipes for the transport of fluorosilicic acid. Beyond the costly installation, the tubes suffered from corrosion and wear, forcing maintenance workers to replace the tubes every 5 to 9 months, and on several occasions to stop production altogether.
Pexgol Solution
- • In the first instance, PE-X test tubes were placed in the fluid to be transported. Once the laboratories certified that the acid did not carry out any chemical attack on the tubes, 12 meter pipe sections were installed with electrofusion couplings.
- Since then, in 1995 till today thousands of meters have been installed transporting fluorosilicic acid without having to replace the tubes or have to carry out any maintenance.
- The resistance to high temperatures, abrasion and chemical attacks caused the maintenance costs in the process plant to be significantly reduced and the investment amounts to be reduced in new plant expansion projects.
