Transportation of Phosphoric Acid

Transportation of Phosphoric acid in a potassium nitrate plant

Case Study Nº

13

Customer

Haifa Chemicals
Israel

|

1995

Working Conditions

Phosphoric acid up to 85%. The maximum working condition is 6 bar and 80°C.

Pexgol Pipes

Pexgol ½” (16 mm) up to 14” (355 mm).

Application

Phosphoric acid.

Lenght

1000 meters.

Categories

Transportation of Phosphoric acid in a potassium nitrate plant

The Challenge

Corrosion in the pipes and leakages in the connections. Frequent replacement needed. Fiberglas and Rubber lined steel pipes are hard to maintain.

Pipe materials tried prior to Pexgol:

  • Rubber lined steel pipes in short sections
  • Fiberglass pipes

Pexgol Solution

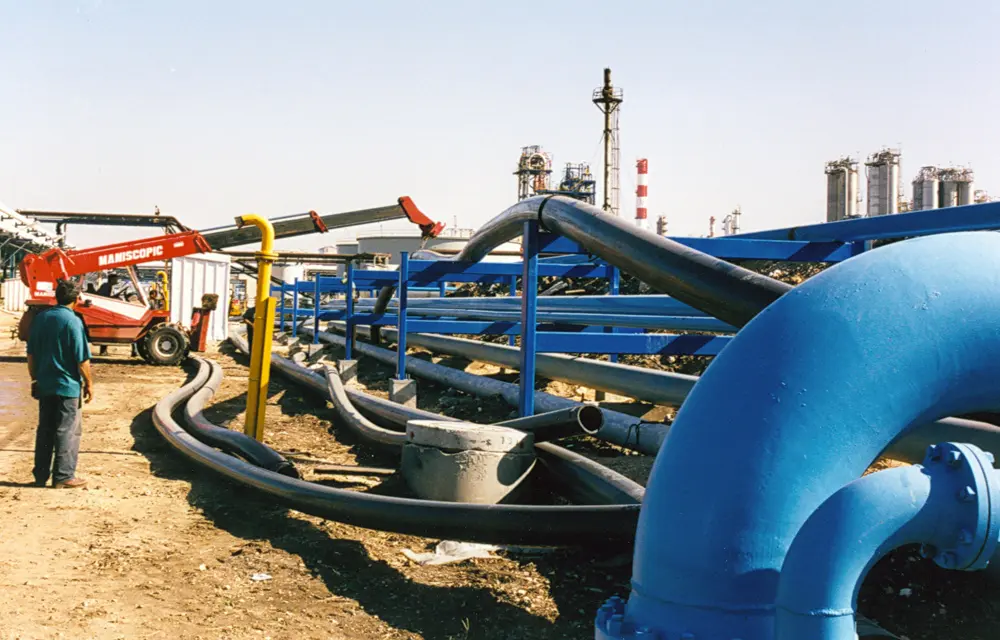

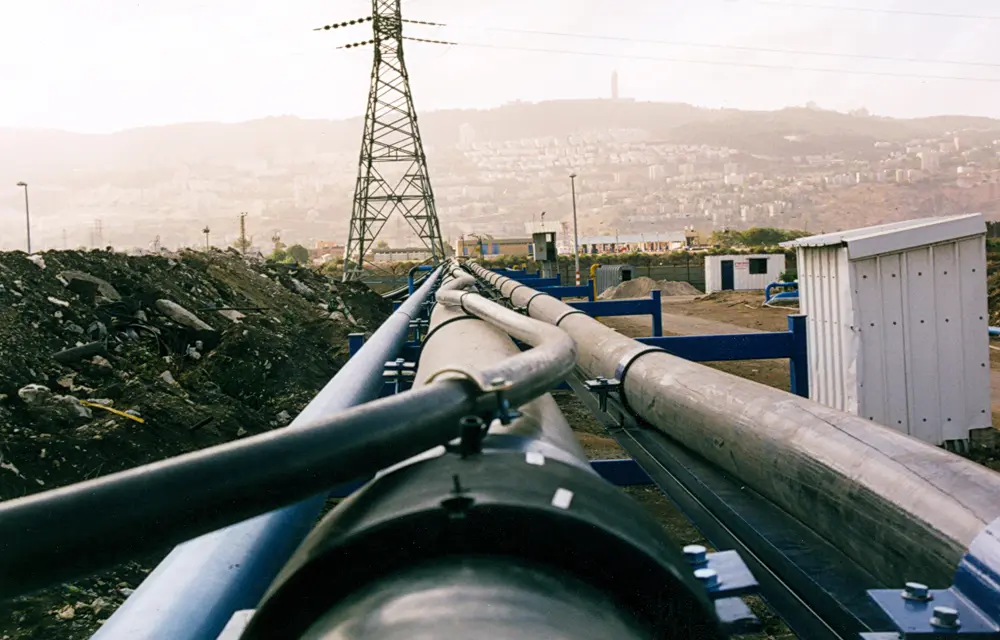

Haifa Chemicals use Pexgol (PEX) pipes very successfully, since 1995 in all their process.

Diametr of ½” (16 mm) up to 14” (355 mm)

Pexgol pipes are used in the Phosphoric acid plant, in the potassium nitrate plant and in the waste treatment plant. Pexgol pipes work with Phosphoric acid up to 85%, The maximum working condition is 6 bar and 80 degrees Celsius.

The Economic

The original mean time between failures (MTBF) was short due to frequent leakages. Changing to Pexgol eliminated faileures completely.

No maintenance required.
